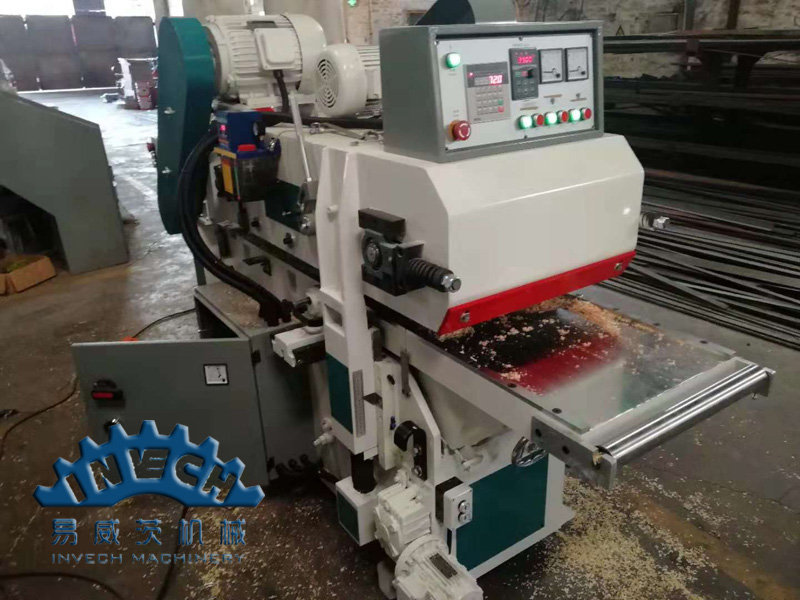

Double Side Wood Planning Machine is the double side planning machines for boards,timber, which is widely used in pakaging industrial field,like wooden pallets boards pre-processing. Also it is used for furnature processing.
Technical Parameters:
|
Model |
MB2040 |
MB2063 |
|
Max. planing width mm |
400 |
630 |
|
Max. planing thickness mm |
120 |
150 |
|
Min. planing length mm |
300 |
300 |
|
Min. planing thickness mm |
10 |
10 |
|
Top cutter planing capacity mm |
7 max. |
7 max. |
|
Bottom cutter planing capacity mm |
5 max. |
5 max. |
|
Feeding speed m/min |
5-20 |
6-18 |
|
Spindle speed r/min |
5000 |
5000 |
|
Planing spindle diameter mm |
Ø112 |
Ø112 |
|
Bottom horizontal cutter motor kW |
7.5 |
11 |
|
Top horizontal cutter motor kW |
4 |
7.5 |
|
Feed motor kW |
2.2 |
3 |
|
Lifting motor of feed mechanism kW |
0.75 |
0.75 |
|
Overall dimensions mm |
2500×1210×1630 |
2500×1440×1685 |
|
Net.weight kg |
2400 |
3200 |
